Calculated safety

The new service and attendance system


More than 20 years of know-how have gone into the technologies of the modusAOI systems. The durability of a plant as well as short downtimes in the manufacturing process are among the most important requirements for production lines. It is therefore crucial that the production personnel can operate the systems properly.

Training


Modus has developed a multi-stage program to support their customer’s training requirements. Instruction in groups or as individuals, for short or long periods, on customer’s site or at the modus facility in Willich, Germany – special tailored programs are available.

System integration

and commissioning

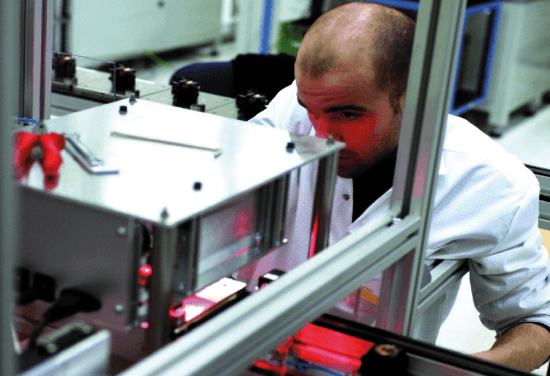

Each customer, each manufacturer and each production process have different requirements. Maximizing customer satisfaction by meeting these requirements is paramount to modus. Each delivered AOI unit is customized and pre-configured to fit directly into the production lines of our customers. After in-line integration of an AOI system
by the customer the service and support team by modus trains the customer’s operators for daily use and maintenance and carry out the final acceptance test on customer’s site together.

bild 77

Certified service partners


Technical support is not only assured by modus own service stuff but also by modus certified service partners. These partner companies undergo a thorough training and final assessment which complies to the same high standards as are guaranteed by the modus service department

AAT-ASTON, Germany
Link Ways: China
Axxon: China

Global Enginering: Russian
SMT-A: Mexico
SMT-E: South Europe
Accelonix: France
Premtronic: South East Asia

PSP: Brazil
Bergen Group: India

OEM: Partner
Haprotec: Germany, DACH
PVA: CCI-WW
Linkways: CCI-WW
Axxon: CCI-WW
Seica Group: Italy, USA

On-site maintenance


Although modus AOI systems do not need a lot of maintenance to work properly, modus recommends routine inspections in regular intervals to maximize the durability and reliability of the AOI systems. Especially the mechanical components underly natural wear and tear. An annual maintenance is advisable and minimizes downtime. modus offers three service plan variants:

Basic service contract
  • 6x telephone support per month inclusive. 8-hour response time during modus business hours

  • 6x remote support per month inclusive. 8-hour response time during modus business hours

  • Yearly on-site maintenance:

    • Safety check

    • Cleaning (scanner glas, housing, air vent filters)

    •  Check of system calibration inclusive re-calibration if necessary

Premium service contract
  • 12x telephone support per month inclusive. p 8-hour response time during modus business hours

  • 12x remote support per month inclusive. 8-hour response time during modus business hours

  • Yearly on-site maintenance:

    • Safety check

    • Cleaning (scanner glas, housing, air vent filters)

    • Check of system calibration inclusive re-calibration if necessary

  • 5x on-site support per year inclusive. 48-hour response time during modus business hours

  • Travel costs included

Premium Plus service contract
  • Unlimited telephone support Reaction within 8 hours during modus working hours.

  • Unlimited remote support Reaction within 8 hours during modus working hours.

  • including material

  • Yearly on-site maintenance:

    • Safety check

    • Cleaning (scanner glas, housing, air vent filters)

    • Check of system calibration inclusive re-calibration if necessary

  • Unlimited on-site support. 24-hours response time during modus business hours

  • Travel costs included

AOI-accesories

Accessories and spare parts


UPS

uninterruptible power supply, 1000 VA, integrating option into transporting module

modusBC-L

Runtime license to capture linear barcodes

modusBC-D

Runtime license to capture linear barcodes

modusBC-LD

Runtime license to capture linear barcodes and data matrix codes

modusEBC-L

External linear barcode scanner

modusHBC-L

Handheld barcode scanner for linear barcodes

modusHBC-D

Handheld barcode scanner for data matrix codes

modusMTT

Mobile transport trolley for modus AOI offline systems

modusPC-C

Computing unit for camera systems

modusPC-S

Computing unit for scanner systems

modusSU MLD1200

Basic scanning unit
• Scan area: 300mm x 410mm
• Resolution: 21 μm / 42 μm per pixel
• Light source: white, red, blue and UV multiLEDs
• Telecentric optical system for parallax free images

modusSU S3

Large scanning unit
• Scan area: 420mm x 530mm
• Resolution: 21 μm / 42 μm per pixel
• Light source: white, red, blue and UV multiLEDs
• Telecentric optical system for parallax free images

modusCU MCS18

Camera unit
• 18 Megapixels
• Pole filter ready
• Megapixel Lenses

modusCU MCS42

Camera unit
• 42 Megapixels
• Pole filter ready
• Megapixel Lenses
